HIGH PERFORMANCE. RELIABLE RESULTS.

JPN800

Engineered for superior print quality, durability, and performance across a wide range of industrial and commercial applications.

JPN800 Product Showcase

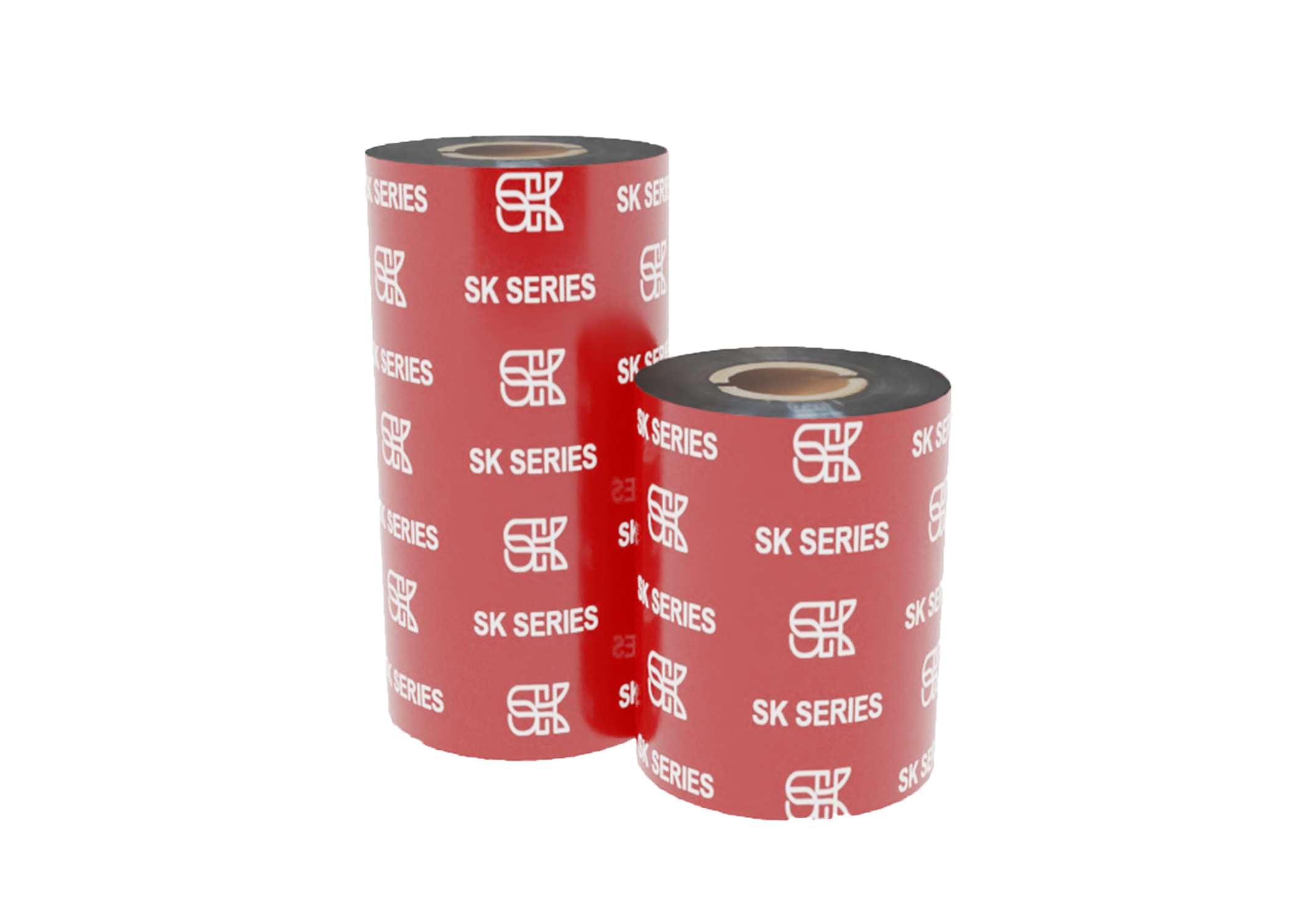

THERMAL TRANSFER RIBBON Standard Resin

JPN800 Standard Resin

A high-performance full resin ribbon designed for harsh environments, providing exceptional resistance to chemicals, heat, and abrasion on synthetic materials like PET and polyimide.

  • Superior resistance to harsh chemicals, solvents, and oils
  • High heat resistance for extreme temperature applications
  • Excellent durability against abrasion and scratching
  • Optimized for synthetic substrates (PET, Polyimide, Vinyl)
  • UL and CSA recognition available for compliant labeling
Ink Type Full Resin
Max Speed 12 IPS
Length 300/450 m
Core Size 1″
Width Range 30–110 mm
Backcoat Anti-static
Recommended Substrates
PET Films Polyimide Vinyl Nylon PP/PE Films
Typical Applications
Laboratory Labels
Circuit Boards
Chemical Drum
Asset Tags
Compatible Printers
Zebra Sato TSC Datamax Intermec Honeywell Godex + More
Quantity (rolls):
Enter quantity and request a quote for pricing.

General Information

Product CodeJPN800
Ink TypeStandard Resin (Full Resin)
ColorBlack
BrandWintech
OriginMade in Japan

Ribbon Specifications

Width Available30, 40, 50, 60, 70, 80, 90, 100, 110 mm
Length300 m / 450 m
Core Size1 inch (25.4 mm)
Winding DirectionCoated Side Out (CSO)
Ink SideOutside
Printhead TypeFlat Head (High Energy)

Print Performance

Max Print Speed12 IPS (305 mm/s)
Recommended Speed4–10 IPS for optimal quality
Print QualityHigh density with excellent edge definition
Chemical ResistanceExcellent — Resistant to alcohol, solvents, oils
Heat ResistanceExcellent — Withstands high temps
Scratch/SmudgeOutstanding durability
Static ControlAnti-static backcoat included

Substrate Compatibility

Primary SubstratesPET, Polyimide (Kapton), Vinyl, Nylon, PE, PP, Silver Foil
Also Suitable ForCoated synthetics and specialty films
Not Recommended ForUncoated paper (poor adhesion); Wax or Wax-Resin applications (too expensive)

Compliance

RoHSCompliant
REACHCompliant
UL / CSARecognition Available (PGJI/PGDQ2)

Application

🚚

Inventory & Logistics

Supports reliable barcode, serial number, and tracking code printing for warehouse management, inventory control, and shipping distribution operations.

💊

Pharmaceutical

Ensures accurate printing of lot codes, manufacturing dates, and traceability information on medical packaging to meet strict industry compliance.

🪪

Name Card

Delivers crisp, professional-quality printing for business cards, name badges, and event credentials requiring sharp text and vibrant graphics.

Description

Introducing the JPN800 flat head resin ribbon, meticulously crafted for exceptional performance on plastic labels. Engineered with a focus on durability, this ribbon ensures a lasting and legible image, even in the face of extended use. JPN800 is designed to meet the demands of diverse industrial settings. Its robust resistance to scratching, smudging, and powerful solvent resistance makes it an ideal choice for creating enduring and high-quality labels. Elevate your product labeling with the reliability and top-notch quality of the JPN800, delivering a solution tailored for longevity and clarity.

PRODUCT SPECIFICATIONS

Ribbon Properties

Ink Resin
Colour Black
Total Thickness 7.8 ± 0.6μ
Base Film Thickness 4.5 ± 0.3μ
Ink Thickness 3.3μ
Max Print Speed 200 mm/sec

Datasheets

JPN800

Standard Resin Ribbon

Download
